Linking code from GitHub

Sourcebot can sync code from GitHub.com, GitHub Enterprise Server, and GitHub Enterprise Cloud. If you’re not familiar with Sourcebot connections, please read that overview first.

Examples

Sync individual repos

Sync all repos in a organization

Sync all repos owned by a user

Filter repos by topic

{
    "type": "github",
    // Sync all repos in `my-org` that have a topic that...
    "orgs": [
        "my-org"
    ],
    // ...match one of these glob patterns.
    "topics": [
        "test-*",
        "ci-*",
        "k8s"
    ]
}

Exclude repos from syncing

{
    "type": "github",
    // Include all repos in my-org...
    "orgs": [
        "my-org"
    ],
    // ...except:
    "exclude": {
        // repos that are archived
        "archived": true,
        // repos that are forks
        "forks": true,
        // repos that match these glob patterns
        "repos": [
            "my-org/repo1",
            "my-org/repo2",
            "my-org/sub-org-1/**",
            "my-org/sub-org-*/**"
        ],
        "size": {
            // repos that are less than 1MB (in bytes)...
            "min": 1048576,
            // or repos greater than 100MB (in bytes)
            "max": 104857600
        },
        // repos with topics that match these glob patterns
        "topics": [
            "test-*",
            "ci"
        ]
    }
}

Authenticating with GitHub

In order to index private repositories, you’ll need to generate a access token and provide it to Sourcebot. GitHub provides two types of access tokens:

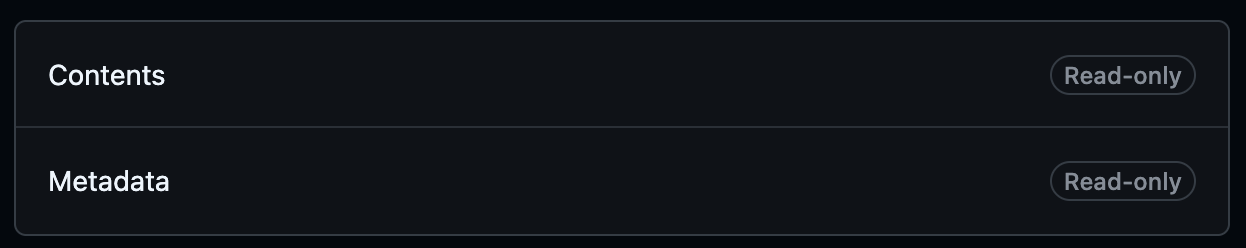

Fine-grained personal access tokens

Personal access tokens (classic)

Next, provide the access token via the token property, either as an environment variable or a secret:

Environment variables are only supported in a declarative config and cannot be used in the web UI.

Add the token property to your connection config:

{
    "type": "github",
    "token": {
        // note: this env var can be named anything. It
        // doesn't need to be `GITHUB_TOKEN`.
        "env": "GITHUB_TOKEN"
    }
    // .. rest of config ..
}

Pass this environment variable each time you run Sourcebot:

docker run \
    -e GITHUB_TOKEN=<PAT> \
    /* additional args */ \
    ghcr.io/sourcebot-dev/sourcebot:latest

Connecting to a custom GitHub host

To connect to a GitHub host other than github.com, provide the url property to your config:

{
    "type": "github",
    "url": "https://github.example.com"
    // .. rest of config ..
}

Schema reference

Reference

schemas/v3/github.json

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "type": "object",
  "title": "GithubConnectionConfig",
  "properties": {
    "type": {
      "const": "github",
      "description": "GitHub Configuration"
    },
    "token": {
      "description": "A Personal Access Token (PAT).",
      "examples": [
        {
          "secret": "SECRET_KEY"
        }
      ],
      "anyOf": [
        {
          "type": "object",
          "properties": {
            "secret": {
              "type": "string",
              "description": "The name of the secret that contains the token."
            }
          },
          "required": [
            "secret"
          ],
          "additionalProperties": false
        },
        {
          "type": "object",
          "properties": {
            "env": {
              "type": "string",
              "description": "The name of the environment variable that contains the token. Only supported in declarative connection configs."
            }
          },
          "required": [
            "env"
          ],
          "additionalProperties": false
        }
      ]
    },
    "url": {
      "type": "string",
      "format": "url",
      "default": "https://github.com",
      "description": "The URL of the GitHub host. Defaults to https://github.com",
      "examples": [
        "https://github.com",
        "https://github.example.com"
      ],
      "pattern": "^https?:\\/\\/[^\\s/$.?#].[^\\s]*$"
    },
    "users": {
      "type": "array",
      "items": {
        "type": "string",
        "pattern": "^[\\w.-]+$"
      },
      "default": [],
      "examples": [
        [
          "torvalds",
          "DHH"
        ]
      ],
      "description": "List of users to sync with. All repositories that the user owns will be synced, unless explicitly defined in the `exclude` property."
    },
    "orgs": {
      "type": "array",
      "items": {
        "type": "string",
        "pattern": "^[\\w.-]+$"
      },
      "default": [],
      "examples": [
        [
          "my-org-name"
        ],
        [
          "sourcebot-dev",
          "commaai"
        ]
      ],
      "description": "List of organizations to sync with. All repositories in the organization visible to the provided `token` (if any) will be synced, unless explicitly defined in the `exclude` property."
    },
    "repos": {
      "type": "array",
      "items": {
        "type": "string",
        "pattern": "^[\\w.-]+\\/[\\w.-]+$"
      },
      "default": [],
      "description": "List of individual repositories to sync with. Expected to be formatted as '{orgName}/{repoName}' or '{userName}/{repoName}'."
    },
    "topics": {
      "type": "array",
      "items": {
        "type": "string"
      },
      "minItems": 1,
      "default": [],
      "description": "List of repository topics to include when syncing. Only repositories that match at least one of the provided `topics` will be synced. If not specified, all repositories will be synced, unless explicitly defined in the `exclude` property. Glob patterns are supported.",
      "examples": [
        [
          "docs",
          "core"
        ]
      ]
    },
    "exclude": {
      "type": "object",
      "properties": {
        "forks": {
          "type": "boolean",
          "default": false,
          "description": "Exclude forked repositories from syncing."
        },
        "archived": {
          "type": "boolean",
          "default": false,
          "description": "Exclude archived repositories from syncing."
        },
        "repos": {
          "type": "array",
          "items": {
            "type": "string"
          },
          "default": [],
          "description": "List of individual repositories to exclude from syncing. Glob patterns are supported."
        },
        "topics": {
          "type": "array",
          "items": {
            "type": "string"
          },
          "default": [],
          "description": "List of repository topics to exclude when syncing. Repositories that match one of the provided `topics` will be excluded from syncing. Glob patterns are supported.",
          "examples": [
            [
              "tests",
              "ci"
            ]
          ]
        },
        "size": {
          "type": "object",
          "description": "Exclude repositories based on their disk usage. Note: the disk usage is calculated by GitHub and may not reflect the actual disk usage when cloned.",
          "properties": {
            "min": {
              "type": "integer",
              "description": "Minimum repository size (in bytes) to sync (inclusive). Repositories less than this size will be excluded from syncing."
            },
            "max": {
              "type": "integer",
              "description": "Maximum repository size (in bytes) to sync (inclusive). Repositories greater than this size will be excluded from syncing."
            }
          },
          "additionalProperties": false
        }
      },
      "additionalProperties": false
    },
    "revisions": {
      "type": "object",
      "description": "The revisions (branches, tags) that should be included when indexing. The default branch (HEAD) is always indexed. A maximum of 64 revisions can be indexed, with any additional revisions being ignored.",
      "properties": {
        "branches": {
          "type": "array",
          "description": "List of branches to include when indexing. For a given repo, only the branches that exist on the repo's remote *and* match at least one of the provided `branches` will be indexed. The default branch (HEAD) is always indexed. Glob patterns are supported. A maximum of 64 branches can be indexed, with any additional branches being ignored.",
          "items": {
            "type": "string"
          },
          "examples": [
            [
              "main",
              "release/*"
            ],
            [
              "**"
            ]
          ],
          "default": []
        },
        "tags": {
          "type": "array",
          "description": "List of tags to include when indexing. For a given repo, only the tags that exist on the repo's remote *and* match at least one of the provided `tags` will be indexed. Glob patterns are supported. A maximum of 64 tags can be indexed, with any additional tags being ignored.",
          "items": {
            "type": "string"
          },
          "examples": [
            [
              "latest",
              "v2.*.*"
            ],
            [
              "**"
            ]
          ],
          "default": []
        }
      },
      "additionalProperties": false
    }
  },
  "required": [
    "type"
  ],
  "additionalProperties": false
}
